S&S CYCLE PowerPak WaterCool 4.25Bore4.3 310-1050C
PowerPak WaterCool 4.25″Bore4.375″Stroke M8 Blk w/Highlite
€4,796.02
Διαθέσιμο κατόπιν παραγγελίας
Διαθέσιμο κατόπιν παραγγελίας
Description
124" Power Package
- Bolt-on kit
- With updated fins
- No case machining required
- Forged pistons
- Made in the USA

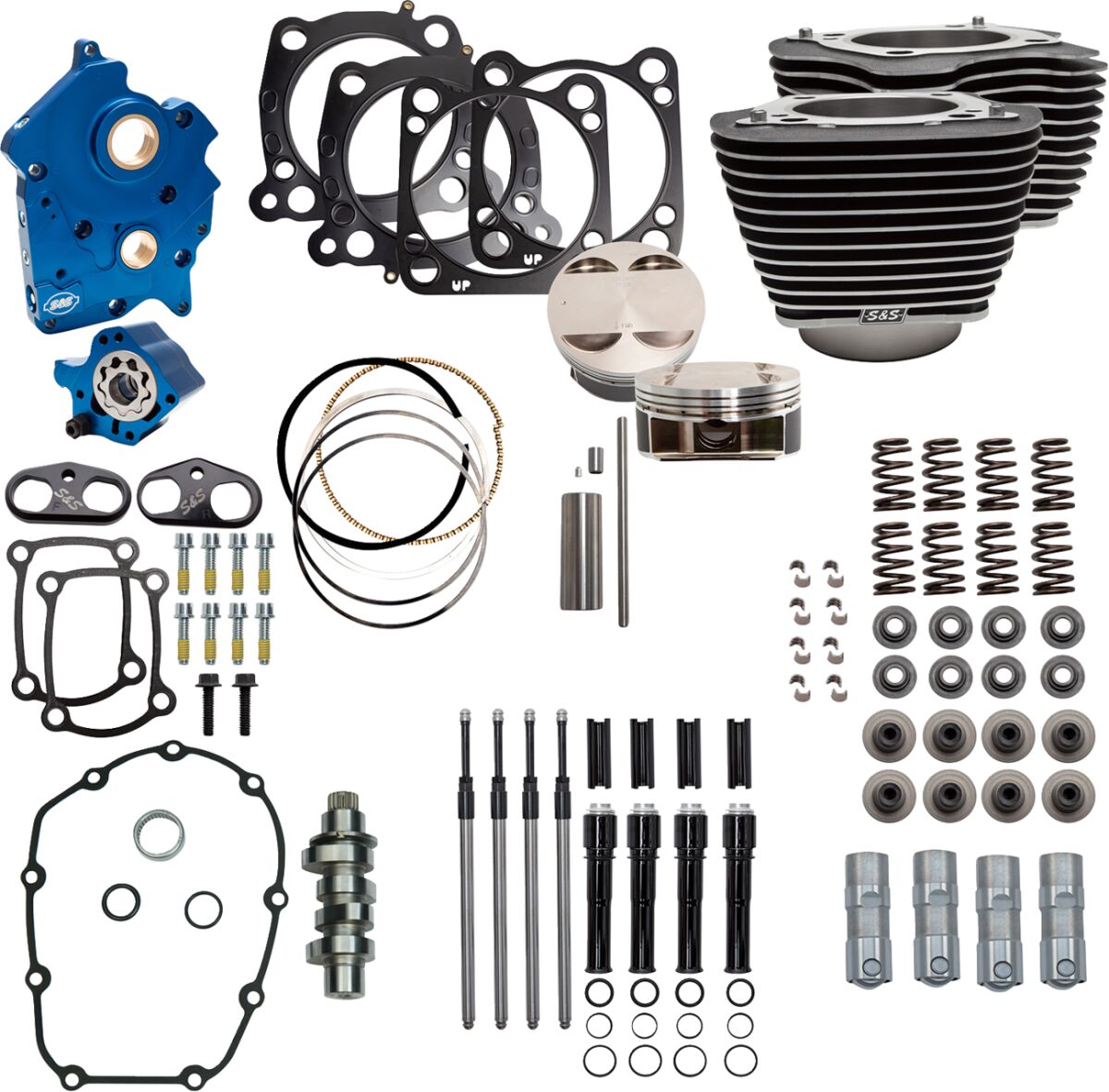

- Includes oil pump/cam plate, pushrods, tappets, tappet cuffs, 550 camshaft, valve springs
- Oil Pump/Cam Plate:
- Precision machined from billet aluminum
- Passage plugs removable for servicing
- Independent scavenge sections for flywheel cavity and camchest
- Debris screens in both scavenge pickups
- Magnet in camchest to help to stop debris from entering oil pump
- 44% flow increase on supply side and 58% flow increase on scavenge side
- Pressure relief valve is adjustable with unit installed in engine
- Pushrods:
- Quickee pushrods
- Tappets:
- Hand assembled to exacting tolerances
- Reduced valve train noise from start up to shut down
- Close tolerances for low leak down rates
- Tappet Cuffs:
- Hard anodized black coating
- Billet aluminum construction
- Tappet stability in high lift and high rpm sitiuations
- Camshaft:
- S&S 550 camshaft – designed for big bore applications
- Valve Springs:
- Works well with camshafts up to 0.605" lift
- High performance conical single wire spring
- Includes top collars, keepers, valve seals and bottom collars
- Not for any Trike models.
- Intake/rocker cover gaskets not included.
Specification
Overview
| Βάρος | 19.886 γρ. |
|---|---|
| Διαστάσεις | 682.625 × 298.450 × 490.855 mm |
| Type | Big Bore |
| Compression Ratio Imperial | 11.1:1 |
| Stroke Length Imperial | 4.375″ |
| Cam Drive Type | Chain |
| Riding Style | Street |
| Model | Power Package |
| Displacement | 124″ |
| Color/Finish | Black, Highlighted Fins |
| Features | Includes Cam Chain Tensioner, Quickee Pushrods w/Chrome Covers |
| Cooling System | Water Cooled |
| Product Name | Performance Kit |
| Bore Size Imperial | 4.250″ |
| Bore Size | 4,250″ |
| Stroke Length | 4,375″ |
| Units | Kit |
| Compression Ratio | 11,1:1 |
