KOSO NORTH AMERICA GAUGES TFT METERS 14-23 HD BA064930
GAUGES TFT METERS 14-23 HD
€1,248.59
Άμεσα διαθέσιμο — 15 τεμάχια
Άμεσα διαθέσιμο — 15 τεμάχια
Description

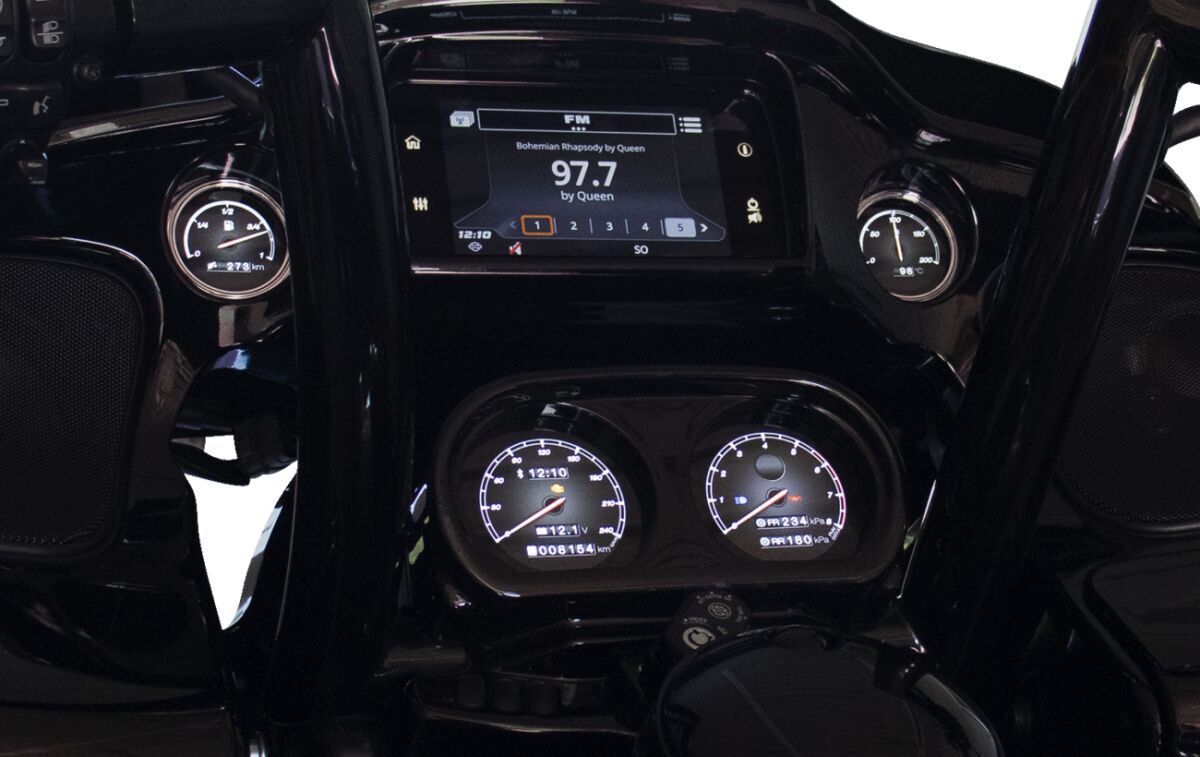

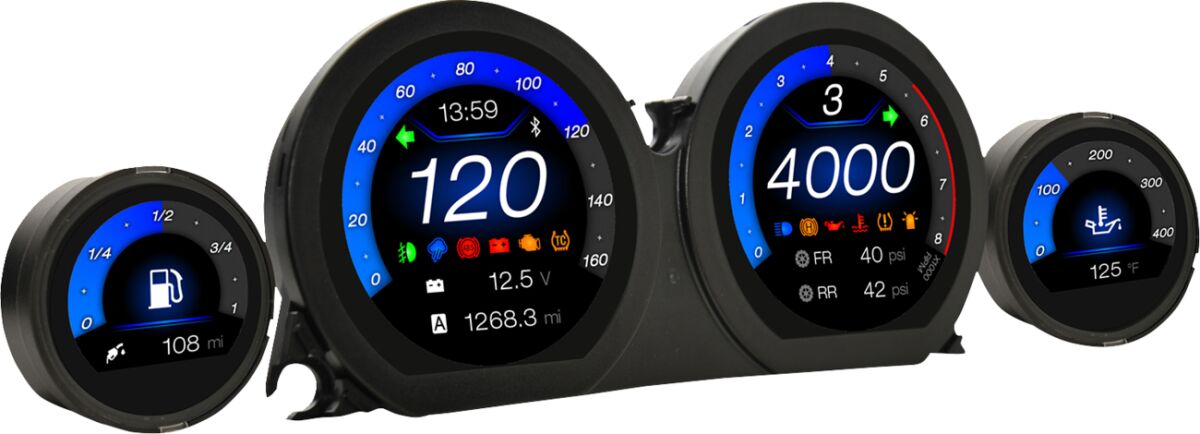

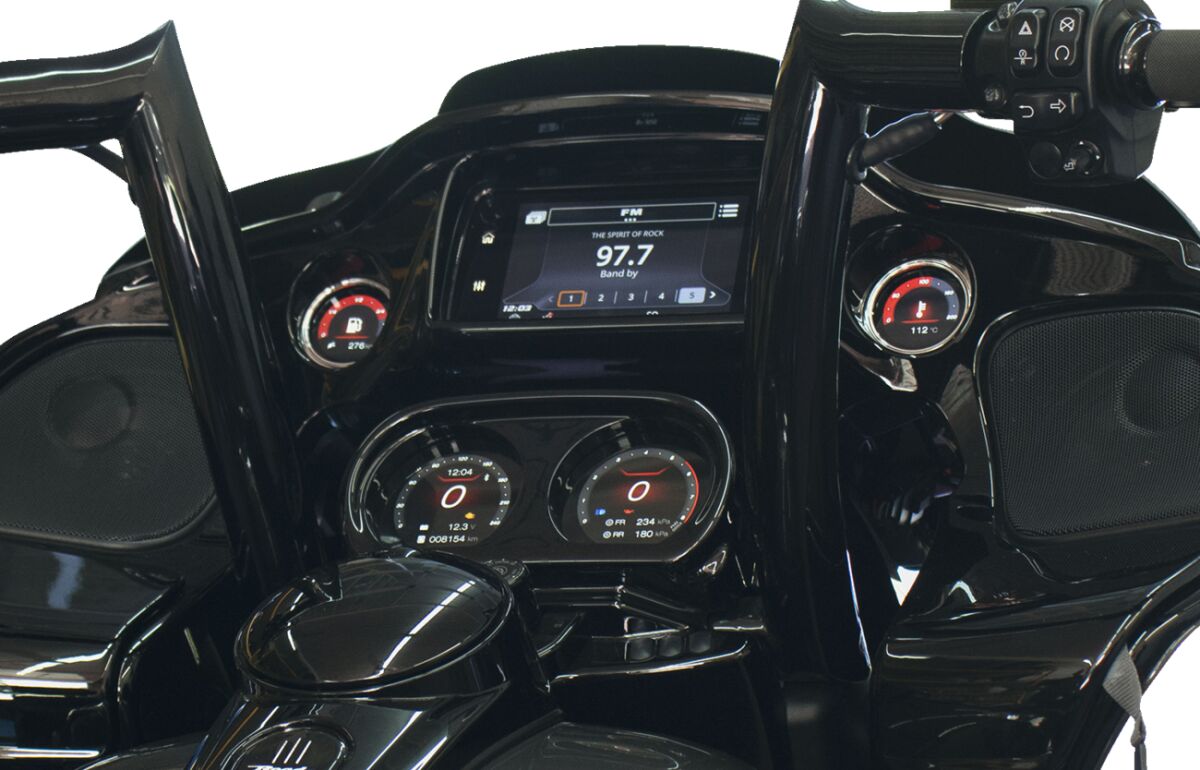

HD-03X | TFT Gauge Set
Optional air pressure sensor kit sold separately (part # 2212-0901).
- Plug and play
- Color customization with daytime and nighttime modes
- Features a smartphone integration that gives full control of dashboard directly from the device
- Connects gauges to phone with the KOSO K Link app and monitor real-time data of the bike: speed, fuel level, oil temperature, gear indicator, RPM, best performance, horsepower, tire pressure and more
- Can see vehicle’s location on the app and never have to search for it again in crowded places

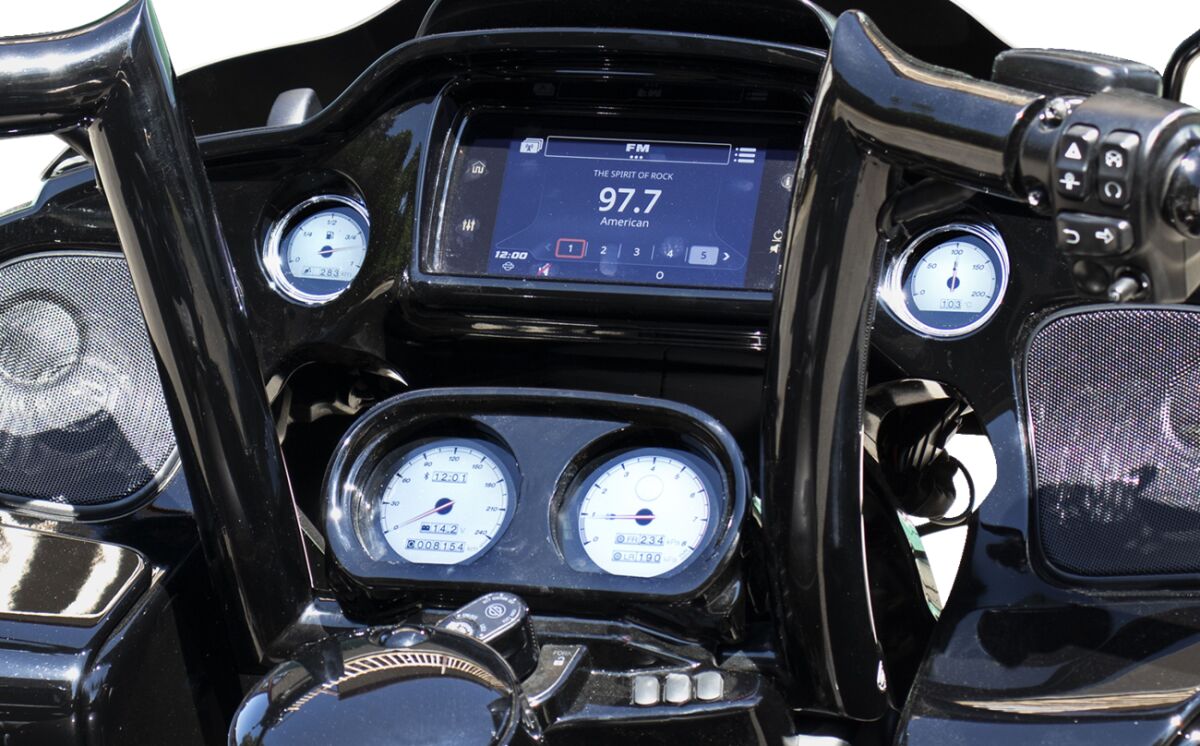

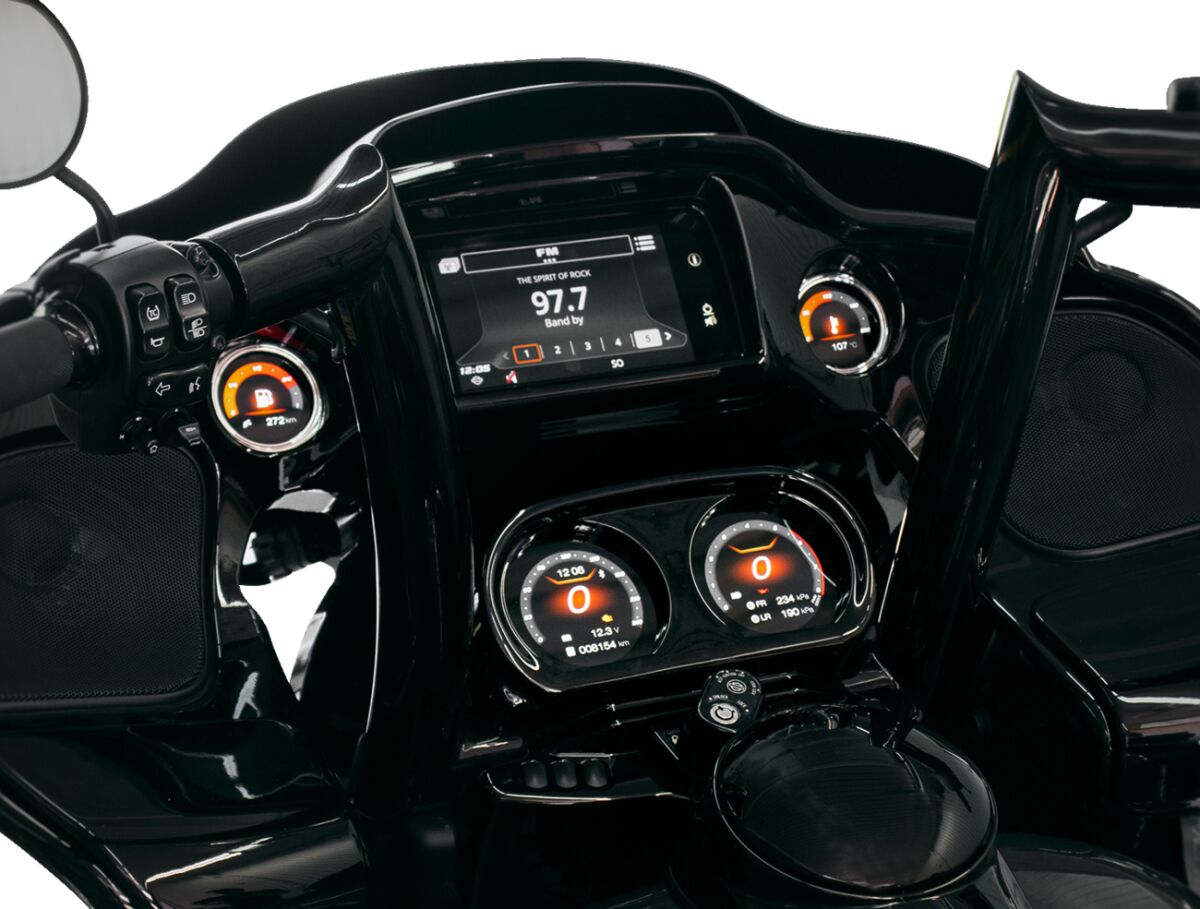

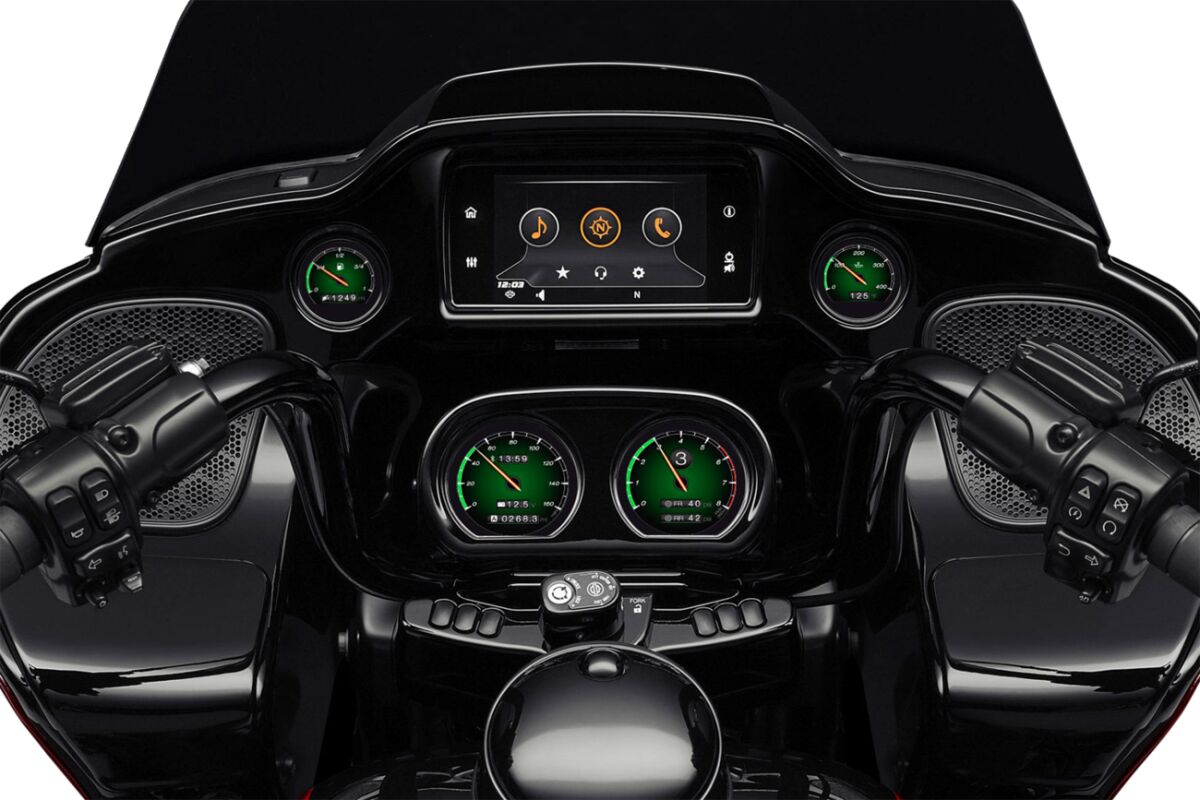

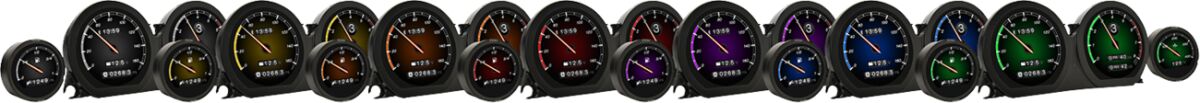

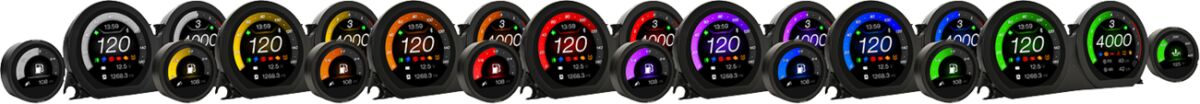

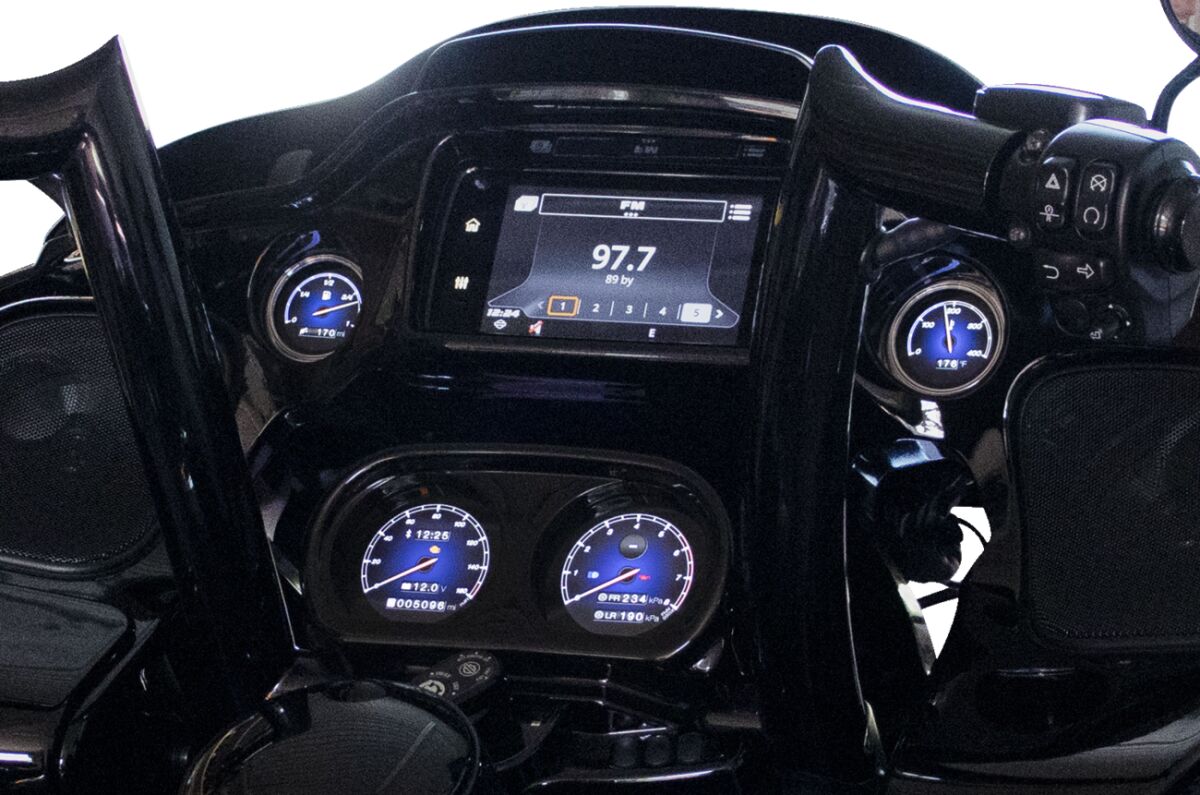

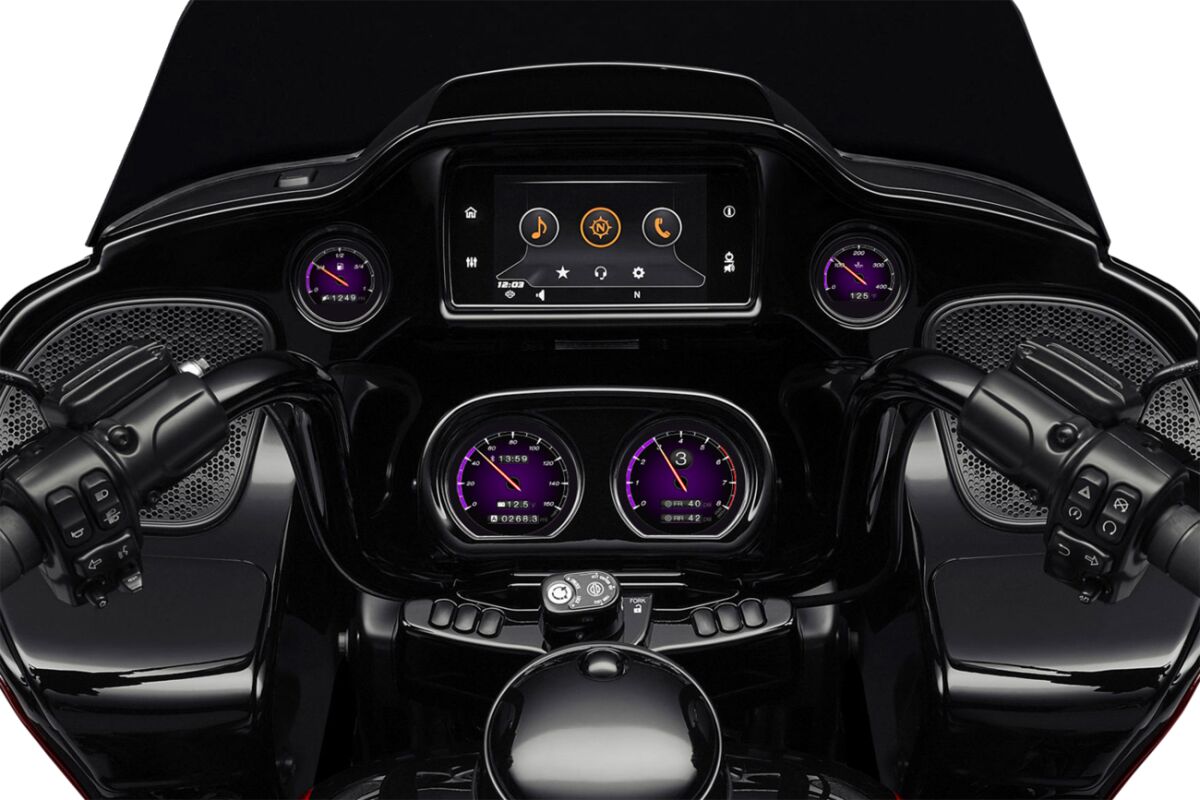

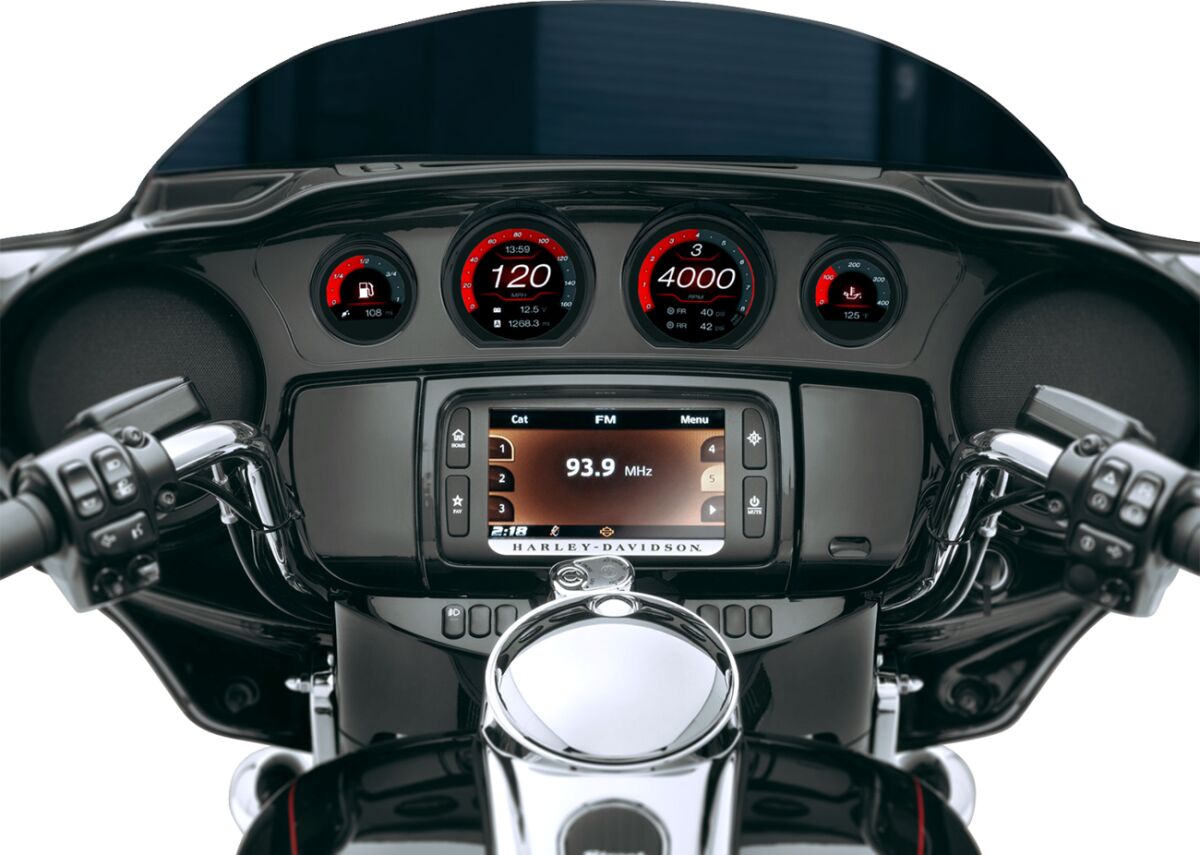

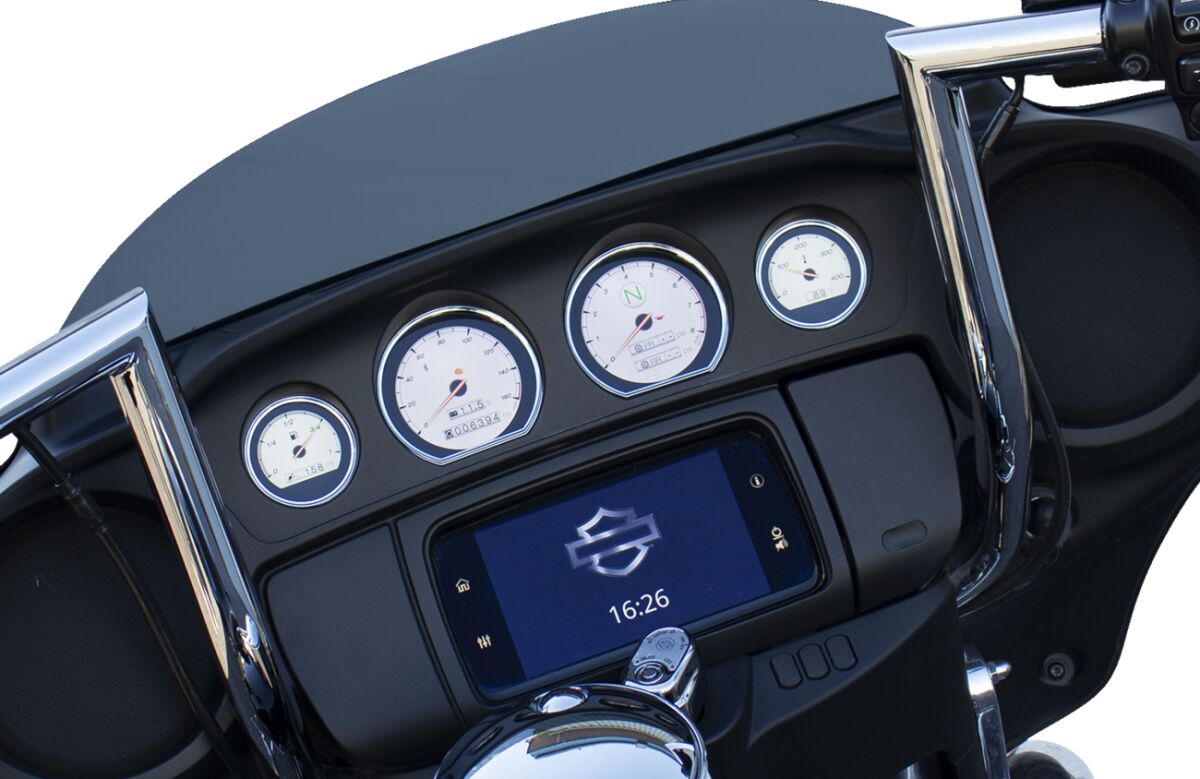

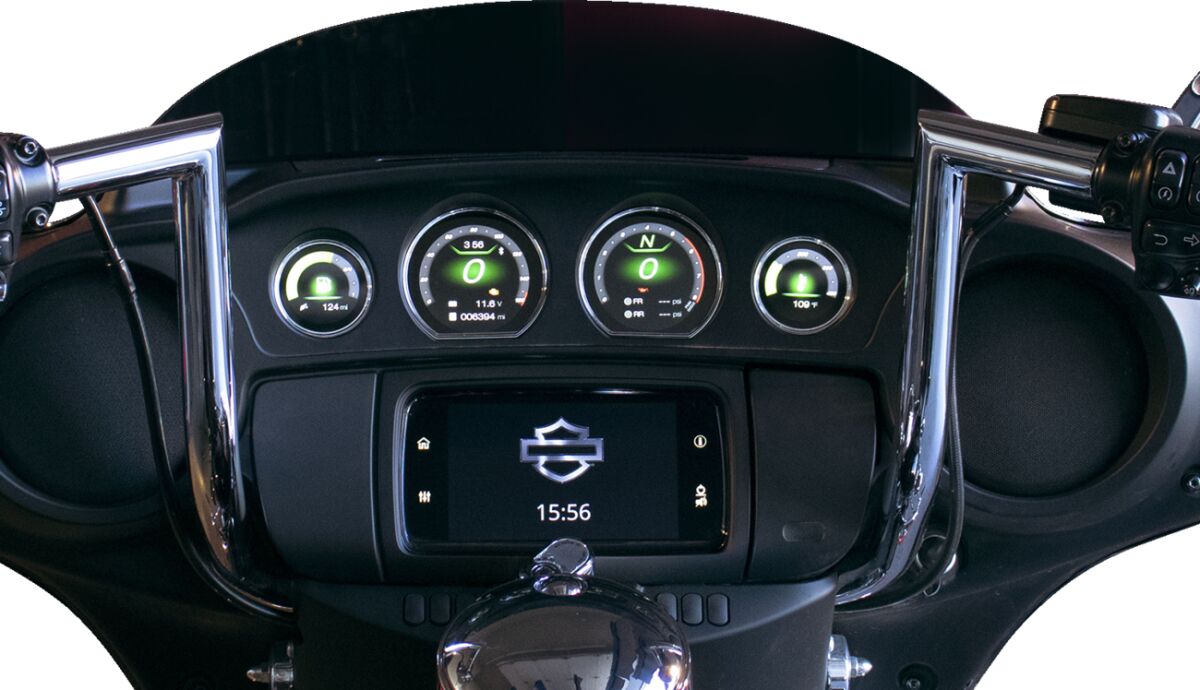

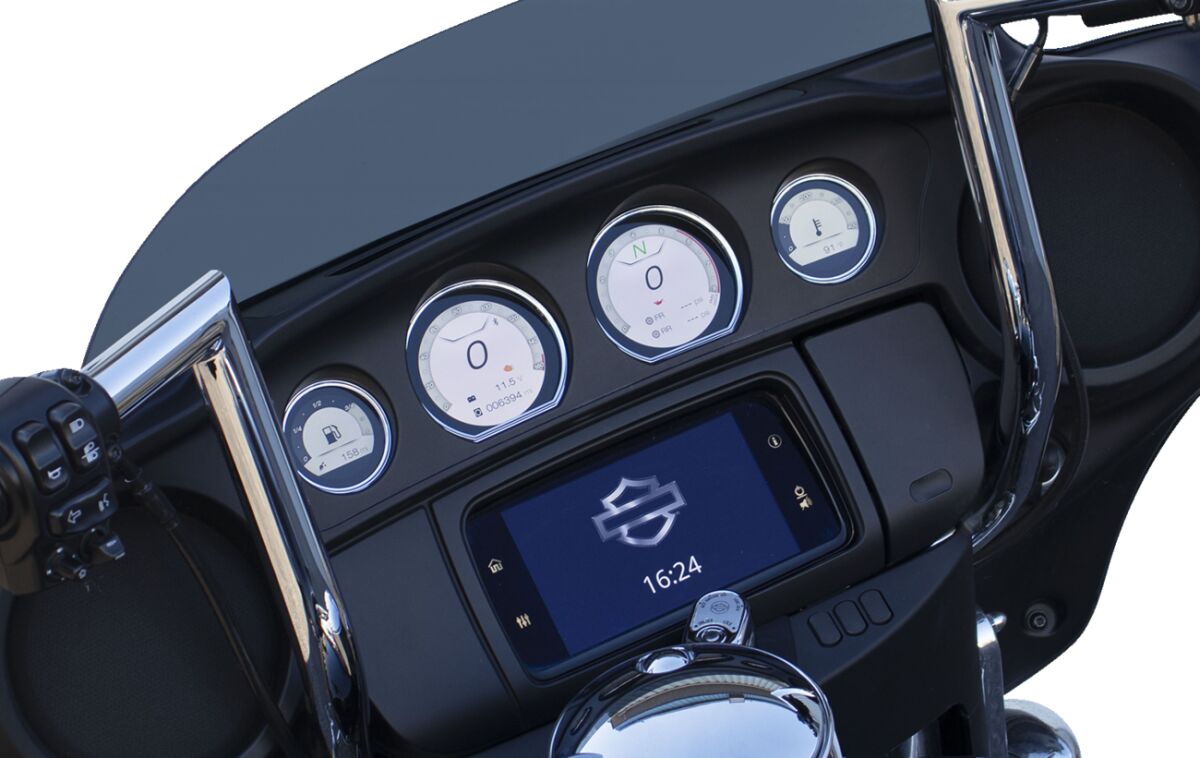

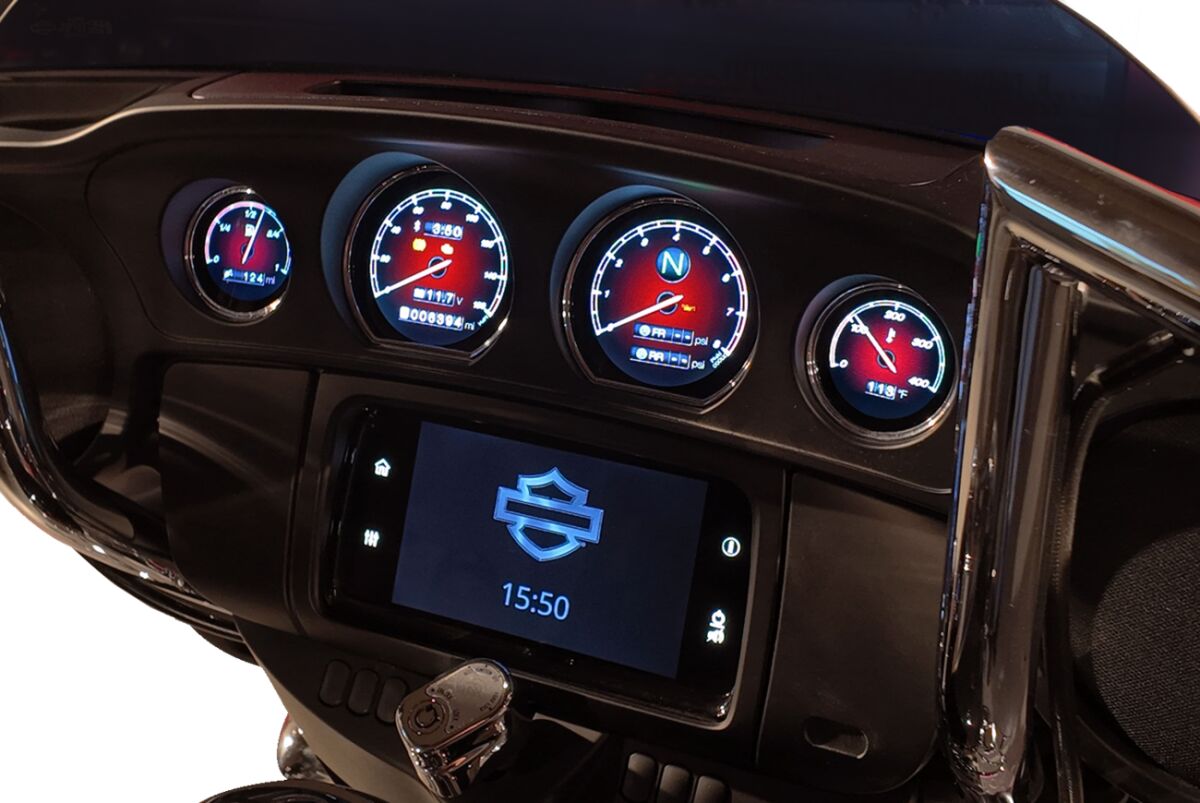

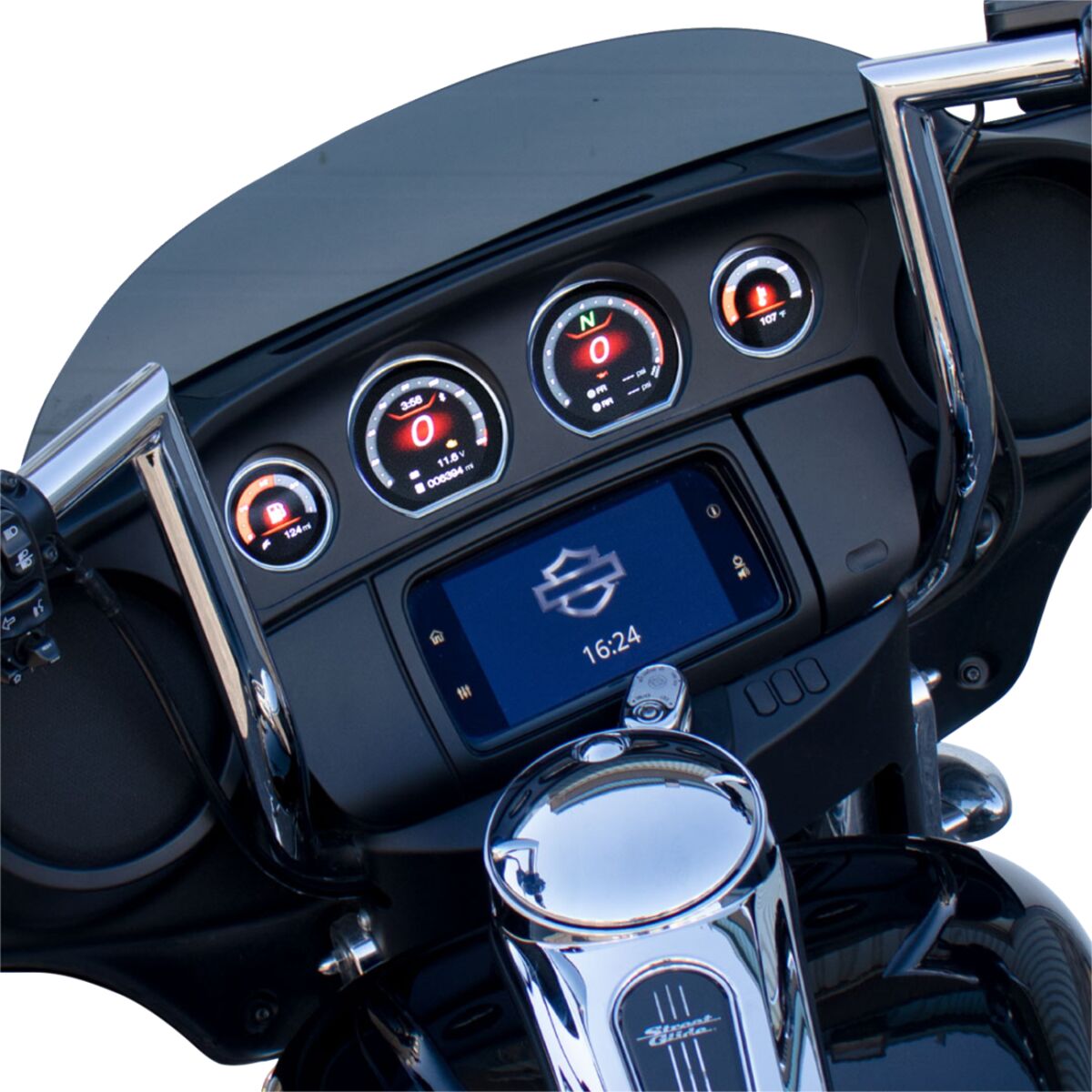

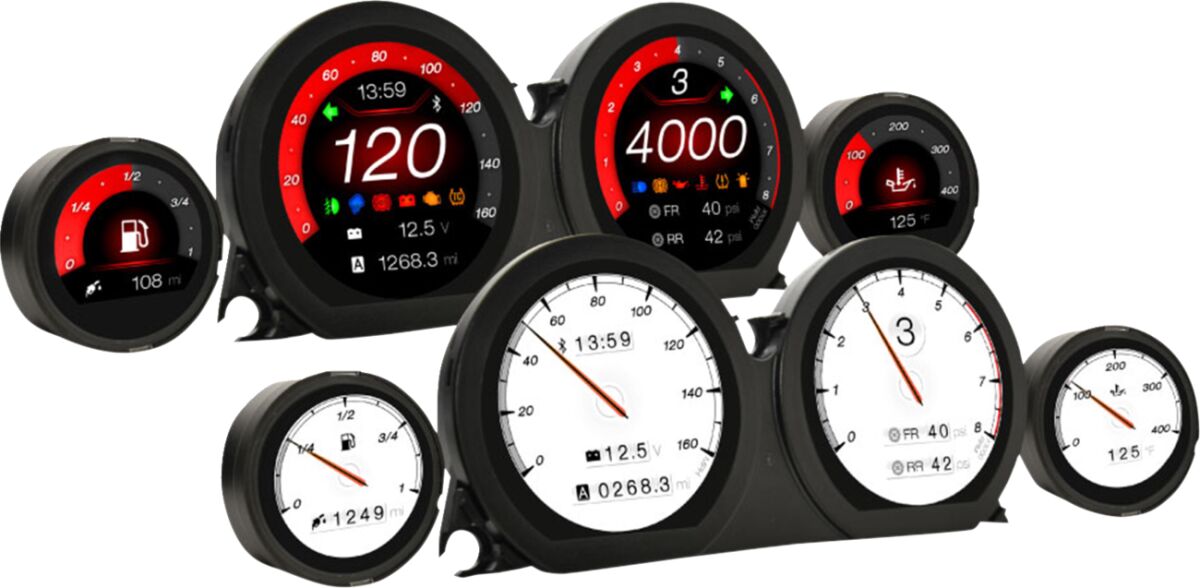

- Match your motorcycle’s style by instantly changing between the analog and digital interface, as well as seven different backlight colors, providing up to 14 unique display combinations
- K Link app also allows to check system health and maintenance with its diagnostics feature
- Optional air pressure sensor for models equipped with air suspension is available separately
- Specifications:
- Tachometer (0 – 8,000), RPM Shift Light (1,000 – 8,000 RPM), Maximum RPM (0 – 8,000 RPM)
- Speedometer (0 – 199 MPH), Maximum Speed Record (0 – 199 MPH), Overspeed Warning (20 – 199 MPH)
- Odometer (0 – 999,999 miles), Tripmeter A/B (0 – 9,999 miles), Mileage Maintenance (300 – 10,000 miles)
- Engine Temperature (40°F – 572°F), Oil Temperature Meter (32°F – 248°F), Maximum Oil Temperature Record (40°F – 572°F) Effective Temperature Range (-4°F – 140°F)
- Volt Meter (DC 8V – 18V), Effective Voltage (DC 12V)
- To access settings on CVO models, must turn on the run/stop switch so that the bike will not turn off. Then make adjustments to the settings on the gauge.
Specification
Overview
| Βάρος | .903 γρ. |
|---|---|
| Διαστάσεις | 347.000 × 171.000 × 103.000 mm |
| Type | Multi-Function |
| Width Metric | 70 mm, 95 mm |
| Style | Electronic |
| Length Metric | 27 mm, 70 mm |
| Length Imperial | 10-5/8″, 2-3/4″ |
| Housing Color | Black |
| Length | 27 cm (10-5/8″), 70 mm (2-3/4″) |
| Units | Kit |
| Riding Style | Street |
| Depth Metric | 44.45 mm, 51 mm |
| Depth | 44,45 mm (1-3/4″), 51 mm (2″) |
| Width Imperial | 2-3/4″, 3-3/4″ |
| Width | 70 mm (2-3/4″), 95 mm (3-3/4″) |
| Depth Imperial | 1-3/4″, 2″ |
| Product Name | Gauge |
| Model | HD-03X |
