HOT RODS CONNECTING ROD 8718 8718

Connecting Rod

Connecting Rod Big End I.D. 29.000 mm

Connecting Rod Big End Width: 17.000 mm

Connecting Rod Center-to-Center: 102.000 mm

Connecting Rod Small End I.D. 19.000 mm

Connecting Rod Small End Width: 16.000 mm

Thrust Washer Thickness: 1.000 mm

Pin Length: 54.500 mm

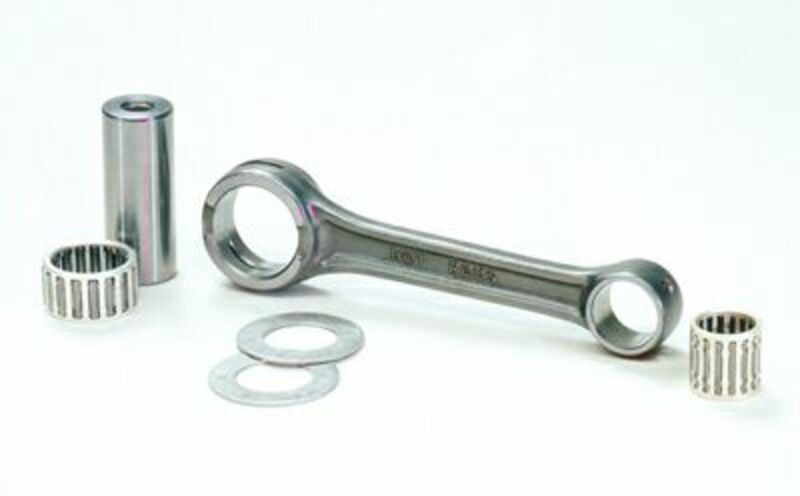

Kit Includes:

• Connecting Rod

• Crank Pin

• Crank Pin Bearing

• Wrist Pin Bearing

• Thrust Washers

• Certified 8620 AISI steel provides superior strength
• Uniquely designed big end uses strategically located side scalloping vent slots to minimize high-RPM bearing race distortion
• Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to 58-62Rc
• Hot Rods uses the latest in caged needle roller bearing designs for high RPM longevity
• Thrust washers are manufactured from bronze phosphor and are silver coated
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top-end bearing and thrust washers
• Compatible with Hot Rods and OE crankshafts
• Made in USA
