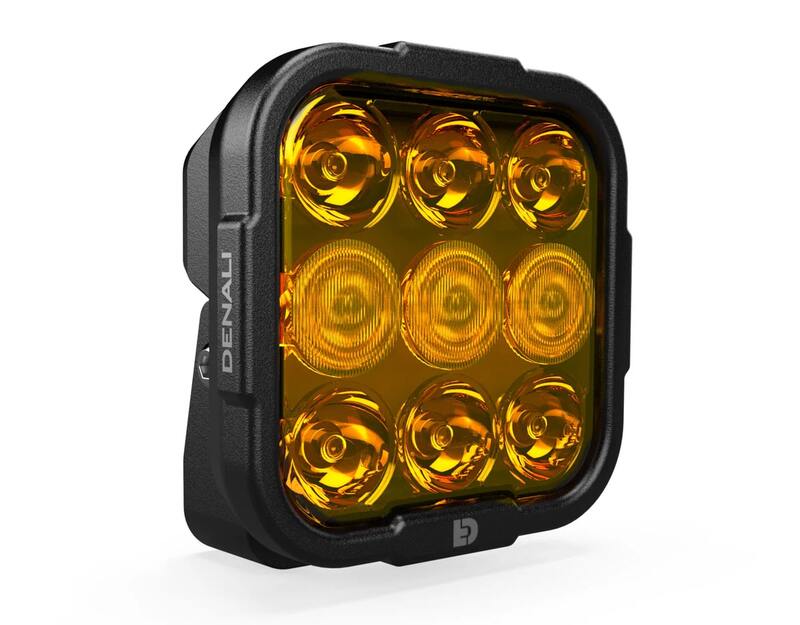

DENALI DL9 LIGHT POD HYBRID AMBER DNL.DL9.050.A

DL9 Hybrid Driving

OFF ROAD USE ONLY

• HiDrive LEDs 15,300 Lumens Per Pair – Top-bin CREE LEDs driven at 8 watts each deliver a remarkably powerful beam in a beefy 9-LED square package.
• Oversized TIR Optics – Perfected Hybrid Driving Beam – Our proprietary TIR optics distribute the beam of light more efficiently than traditional reflector optics, giving our driving beam unmatched distance and width from the most compact housing possible.
• DataDim™ Plug-&-Play Dimming – Our signature 3-wire design uses dedicated dimming wiring for maximum reliability and plug-&-play connection to all DENALI light harnesses, DialDim, and CANsmart Controllers.
• DrySeal™ Sealed Beam Construction – Our patented technique robotically seals the lens and uses internal potting at the cable entry to guarantee 100% waterproof submersible performance even when connectors are removed.
• Overbuilt Not Overpriced – Our 4mm thick powder-coated steel brackets & robust heatsink enable an impressive 21grms vibration rating, while our Polycarbonate lenses are reinforced with UV hard coating.
• Specifications (Single | Pair):
• LED's: Cree XPL HI (8W each)
• Watts: 72W | 144W
• Amp Draw: 6A | 12A
• Raw Lumens: 7,650 | 15,300
• Beam Distance: 1380' (421m) | 1835' (560m)
• Beam Width: 360' (110m) | 478' (146m)
• Connector: DataDim Compatible 3-wire DT
• Color Temperature: 6000K
• Operating Voltage: 9-32 VDC
• Pod Size: 4.5" x 4.5" Rectangle x 2" Deep
